Description
If you find opening and closing your front gate is a hassle, then the Lockmaster Automatic Swing Gate Opener is just the thing you need. Designed to work with gates of up to 5.5m wide and weighing 600kg, the automatic swing gate opener is operated by a powerful 24V 80W DC motor. The supplied power comes from 20W polycrystalline solar panel that is used to charge the two 12V 7Ah batteries. A manual release key is also included. Not least, the swing arms are made of high quality aluminium and designed for heavy duty performance as well. All components are housed in a weatherproof control box and two remote controls are provided that operate within a 30m range. There is also a stop and reverse mode with the controls. All necessary hardware for installation and an easy-to-follow set up manual and DVD are supplied together with your purchase.
Features:
600kg opening capacity
Width of gate up to 5.5m
Two 12V 7AH backup batteries
40W Polycrystalline solar panel
24V Low voltage system
Low power consumption
Waterproof and dustproof control box
High quality aluminium swing arm
Stop and reverse mode for obstruction
Emergency release key
Two remote controls with 30m operation range
Full user manual and DVD included
Installation hardware
Specification
Voltage: DC 24V
Input: 230V/ 50Hz or 120V/60Hz
Power: 80W/ arm
Max weight gate: 600kg
Max width gate: 5.5m
Current: 3A
Actuator speed: 16mm/s
Actuator travel: 385mm
Protection class: IP44
Power supply: Full solar energy only
Assembly Required: Yes
Please note: This item comes in 2 Packages
Backup battery: 2x 12v 12AH AGM Batteries
Remote control battery: Alkaline zinc manganese battery 12V 27A

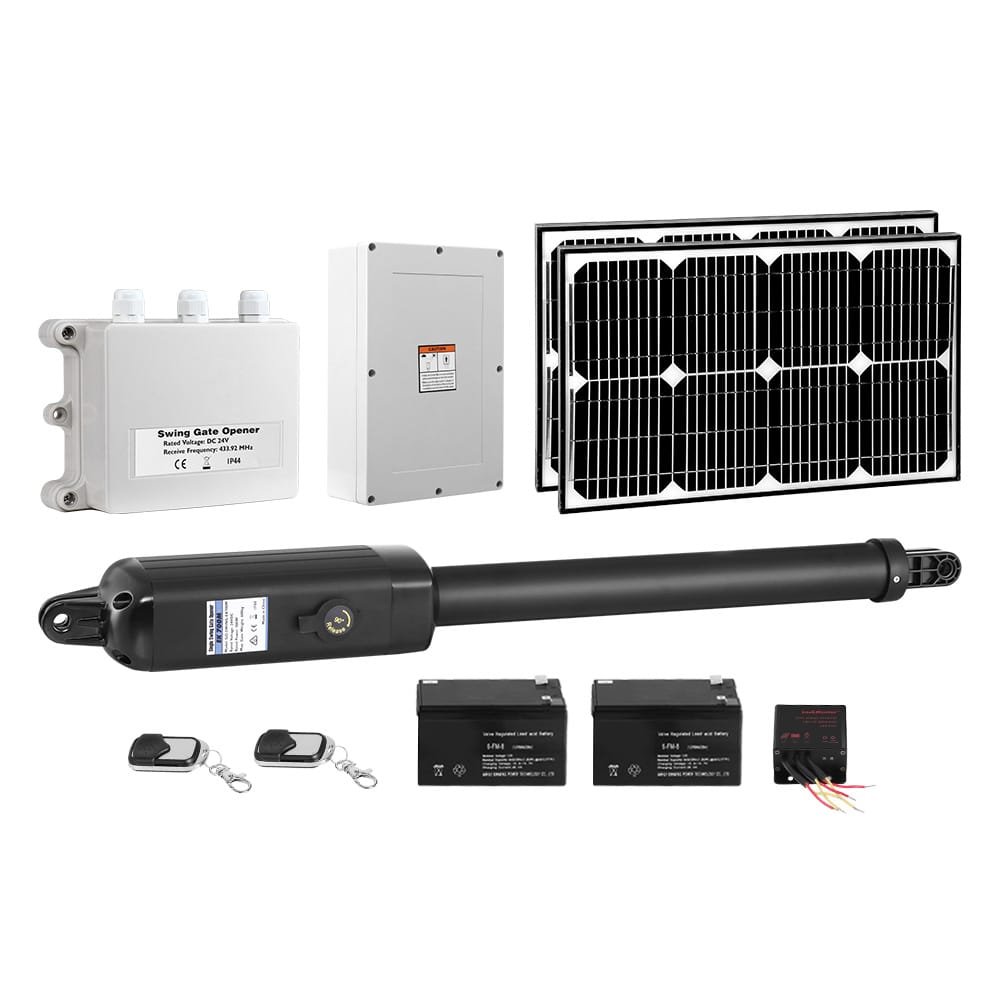

Package Content:
1 x Swing Arm
2 x Remote Control
1 x Control Box
2 x Solar Panel
2 x Battery
1 set x Installation Accessories
1 x User Manual
